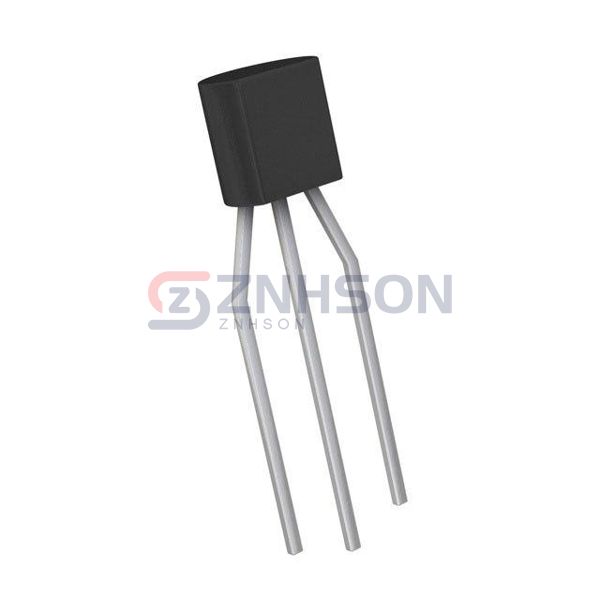

MCR100-5 A1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
SCR 300V 800MA TO92
$0.00
Available to order
Reference Price (USD)
20,000+
$0.06656
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MCR100-5 A1G Thyristor - SCR from Taiwan Semiconductor Corporation, a game-changer in the Discrete Semiconductor Products sector. Boasting ultra-fast switching and high surge current tolerance, this SCR is built for modern electronics. It's particularly effective in pulse generators, crowbar circuits, and power factor correction devices. Real-world implementations include medical imaging equipment and railway traction systems. Taiwan Semiconductor Corporation's innovative design makes the MCR100-5 A1G a trusted component worldwide.
Specifications
- Product Status: Obsolete
- Voltage - Off State: 300 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 1.7 V
- Current - On State (It (AV)) (Max): -
- Current - On State (It (RMS)) (Max): 800 mA
- Current - Hold (Ih) (Max): 5 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 10A @ 60Hz
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Supplier Device Package: TO-92
