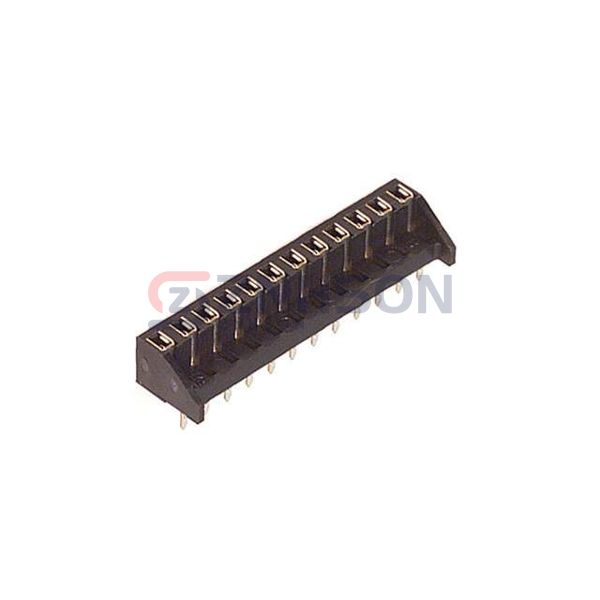

MDF7-12S-2.54DSA(55)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN RCPT 12POS 0.1 TIN PCB
$1.59
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.25000
100+
$1.07100
500+
$0.89250
1,000+
$0.76500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with MDF7-12S-2.54DSA(55) Hirose Electric Co Ltd Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Hirose Electric Co Ltd connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom Entry
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 12
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Insulation Color: Black
- Insulation Height: 0.197" (5.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -35°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
