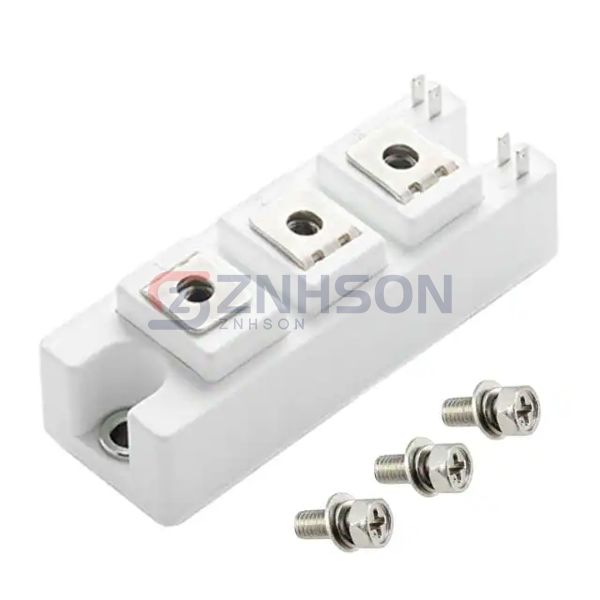

MG06100S-BN4MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 600V 100A 330W S3
$0.00
Available to order
Reference Price (USD)
1+
$79.28000
10+
$74.82700
25+
$71.70960
100+
$68.14620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Littelfuse Inc.'s MG06100S-BN4MM, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The MG06100S-BN4MM performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Littelfuse Inc.'s MG06100S-BN4MM, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 125 A
- Power - Max: 330 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 100A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 6.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: S-3 Module
- Supplier Device Package: S3
