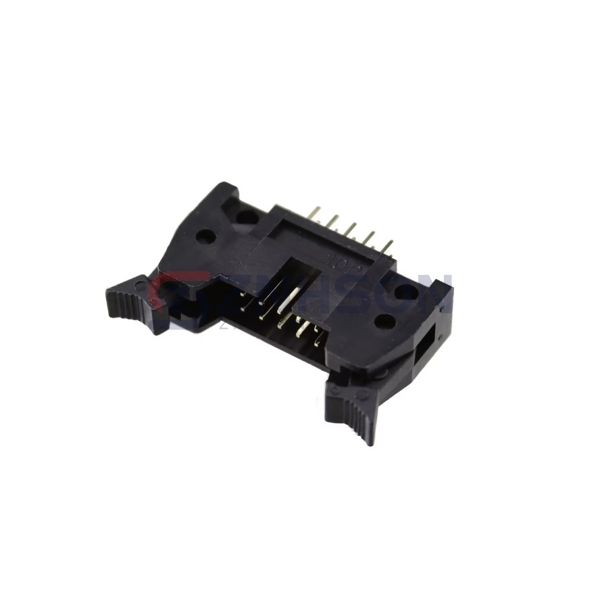

MHR-10-VUAS
Adam Tech
Adam Tech
CONN HEADER VERT 10POS 2.54MM
$0.83
Available to order
Reference Price (USD)
1+
$0.79000
10+
$0.74300
156+
$0.56923
624+
$0.49500
1,092+
$0.40838
5,148+
$0.35888
10,140+
$0.33413
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the MHR-10-VUAS rectangular connector header from Adam Tech, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the MHR-10-VUAS adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Adam Tech guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.677" (17.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
