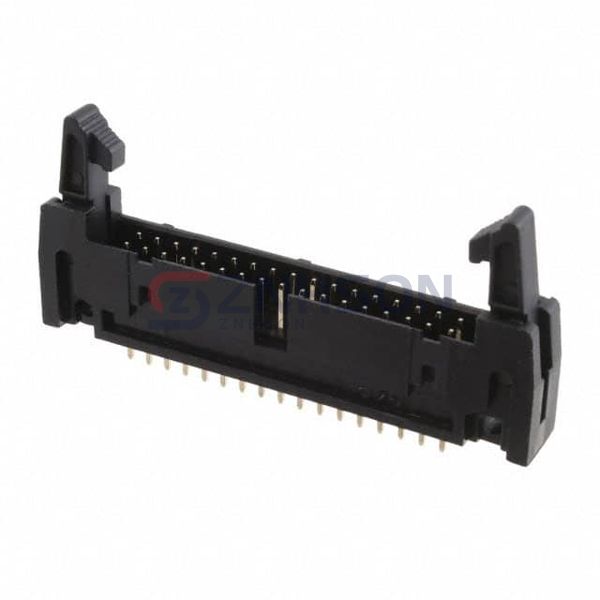

MHR-34-VUAL
Adam Tech
Adam Tech
CONN HEADER VERT 34POS 2.54MM
$1.62
Available to order
Reference Price (USD)
1+
$1.54000
10+
$1.39900
216+
$1.19954
648+
$0.99960
1,080+
$0.85680
5,184+
$0.75970
10,152+
$0.74256
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MHR-34-VUAL by Adam Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the MHR-34-VUAL supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Adam Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: -
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.331" (8.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
