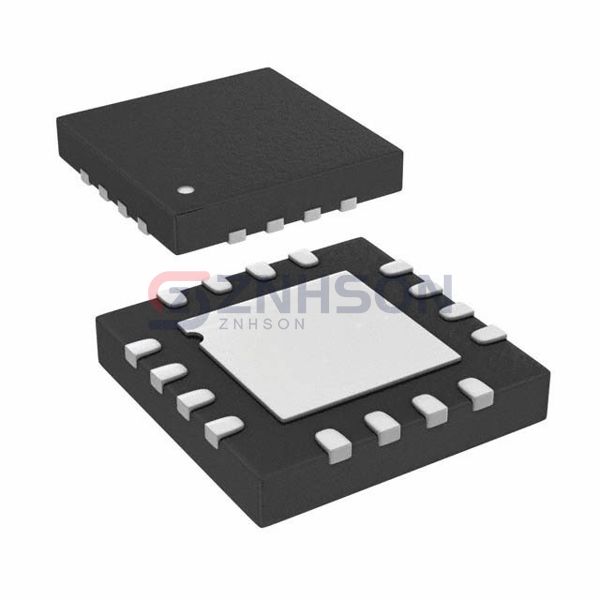

MIC5384-SJG1YMT-TR

Microchip Technology

Manufacturer

Microchip Technology

Description:

IC REG LIN 3.3/2.5/1.8/1V 16TMLF

Datasheet:

MIC5384-SJG1YMT-TR Datasheet

$0.68

Available to order

Reference Price (USD)

5,000+

$0.50470

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The MIC5384-SJG1YMT-TR from Microchip Technology is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 4
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 3.3V, 2.5V, 1.8V, 1V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.33V @ 150mA, 0.45V @ 150mA, 0.45V @ 150mA, 0.45V @ 150mA
Current - Output: 200mA, 200mA, 200mA, 1mA
Current - Quiescent (Iq): 20 µA
Current - Supply (Max): -
PSRR: 55dB (1kHz)
Control Features: Enable, Power On Reset
Protection Features: Over Current, Over Temperature
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 16-UFQFN Exposed Pad, 16-MLF®
Supplier Device Package: 16-TMLF® (2.5x2.5)
