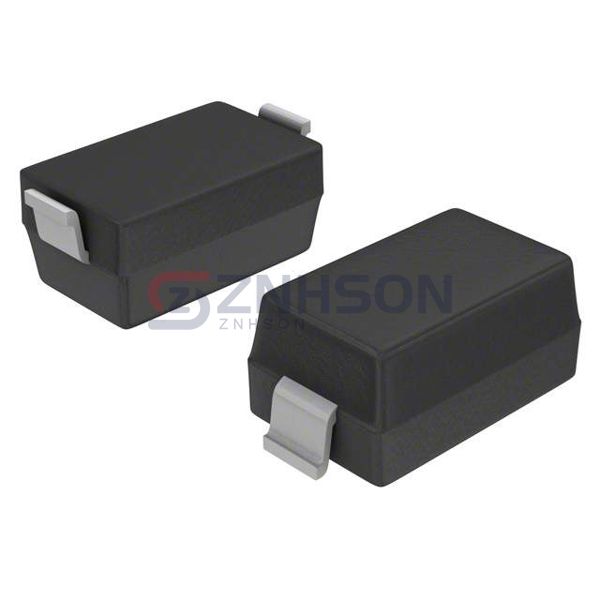

MMSZ5228BQ-7-F
Diodes Incorporated
Diodes Incorporated
ZENER DIODE SOD123 T&R 3K
$0.04
Available to order
Reference Price (USD)
1+
$0.04011
500+
$0.0397089
1000+
$0.0393078
1500+
$0.0389067
2000+
$0.0385056
2500+
$0.0381045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MMSZ5228BQ-7-F from Diodes Incorporated is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the MMSZ5228BQ-7-F is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 3.9 V
- Tolerance: ±5%
- Power - Max: 370 mW
- Impedance (Max) (Zzt): 23 Ohms
- Current - Reverse Leakage @ Vr: 10 µA @ 1 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-123
- Supplier Device Package: SOD-123
Related Products
Panjit International Inc.
1SMC5340_R1_00001
Central Semiconductor Corp
CMDZ5238B TR PBFREE
Microchip Technology
1N5942BPE3/TR12
Microchip Technology

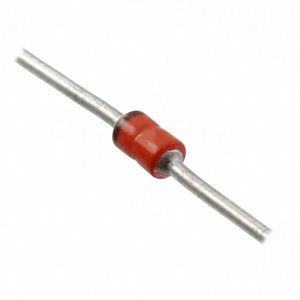

JAN1N3023D-1
Diodes Incorporated

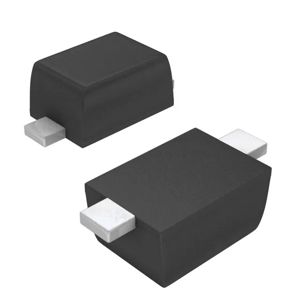

BZT585B39TQ-7
Microchip Technology
JAN1N4116DUR-1/TR
Vishay General Semiconductor - Diodes Division
TLZ3V6B-GS08
Microchip Technology
JAN1N5537DUR-1
Diotec Semiconductor

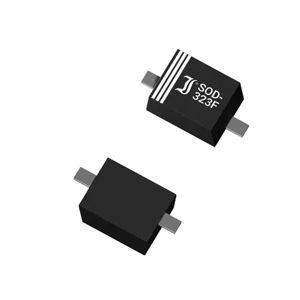

MM3Z47
