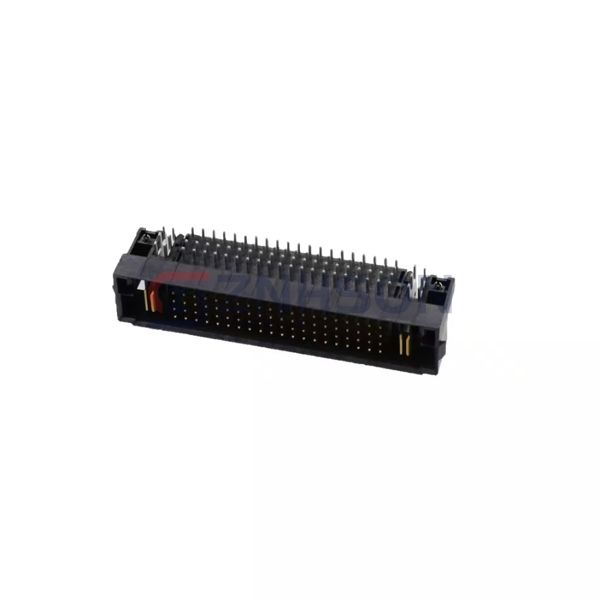

MPTC-01-80-01-01-01-L-RA-LC

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Blade; Male Pin
• Pitch - Mating: -
• Number of Positions: 82 (80 + 2 Power)
• Number of Rows: 4
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Locking Ramp
• Contact Length - Mating: -
• Contact Length - Post: 0.107" (2.71mm)
• Overall Contact Length: -
• Insulation Height: 0.490" (12.44mm)
• Contact Shape: Rectangular, Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy, Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: Board Lock
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: -
