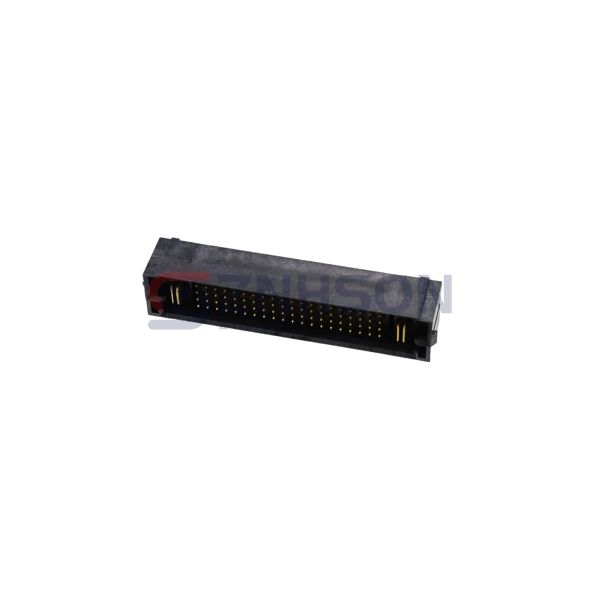

MPTC-01-80-01-6.30-01-L-V-LC
Samtec Inc.
Samtec Inc.
CONN HDR 5MM SGNL/PWR COMBO
$14.11
Available to order
Reference Price (USD)
1+
$14.11000
500+
$13.9689
1000+
$13.8278
1500+
$13.6867
2000+
$13.5456
2500+
$13.4045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MPTC-01-80-01-6.30-01-L-V-LC male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 82 (80 + 2 Power)
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: -
- Insulation Height: 0.448" (11.38mm)
- Contact Shape: Rectangular, Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy, Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250VAC, 354VDC
Related Products
Preci-Dip
832-10-004-10-001101
Samtec Inc.
TFC-115-22-LM-D-A
Samtec Inc.
TSM-108-04-T-SV-LC
Preci-Dip
802-10-036-30-001101
Samtec Inc.
TSM-140-02-F-DV-A
Samtec Inc.
TSM-108-02-T-DV-A
Samtec Inc.
FTR-140-01-S-D-A
Amphenol ICC (FCI)
68002-420HLF
Samtec Inc.

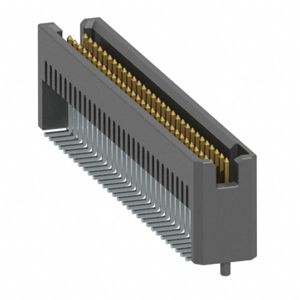

TFM-130-22-SM-D-A-K-TR
