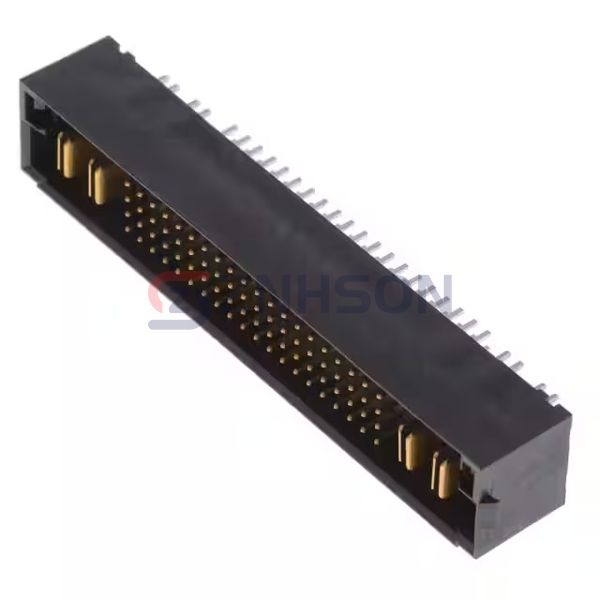

MPTC-02-80-02-6.30-03-L-V
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 84 POS
$15.50
Available to order
Reference Price (USD)
1+
$15.50000
500+
$15.345
1000+
$15.19
1500+
$15.035
2000+
$14.88
2500+
$14.725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MPTC-02-80-02-6.30-03-L-V male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 84 (80 + 4 Power)
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: -
- Insulation Height: 0.448" (11.38mm)
- Contact Shape: Rectangular, Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy, Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0026503189
Samtec Inc.
ZSS-117-02-L-D-630
TE Connectivity AMP Connectors
4-794621-0
Würth Elektronik
61900411121
Sullins Connector Solutions
PBC25DAEN
CNC Tech
3110-26-003-13-00-TR
TE Connectivity AMP Connectors
5499786-1
Molex
50-30-4466

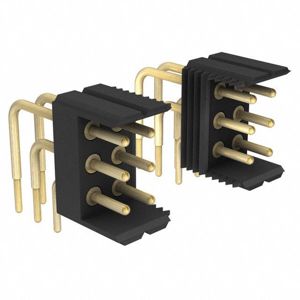

Preci-Dip
