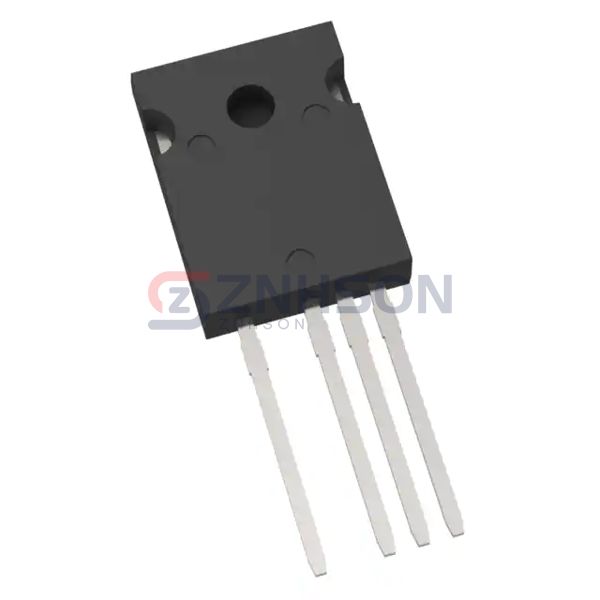

MSC015SMA070B4
Microchip Technology
Microchip Technology
TRANS SJT N-CH 700V 140A TO247-4
$33.59
Available to order
Reference Price (USD)
1+
$33.59000
500+
$33.2541
1000+
$32.9182
1500+
$32.5823
2000+
$32.2464
2500+
$31.9105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MSC015SMA070B4 by Microchip Technology, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The MSC015SMA070B4 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Microchip Technology.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 700 V
- Current - Continuous Drain (Id) @ 25°C: 140A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 19mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.4V @ 4mA
- Gate Charge (Qg) (Max) @ Vgs: 215 nC @ 20 V
- Vgs (Max): +23V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 4500 pF @ 700 V
- FET Feature: -
- Power Dissipation (Max): 455W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-4
- Package / Case: TO-247-4
