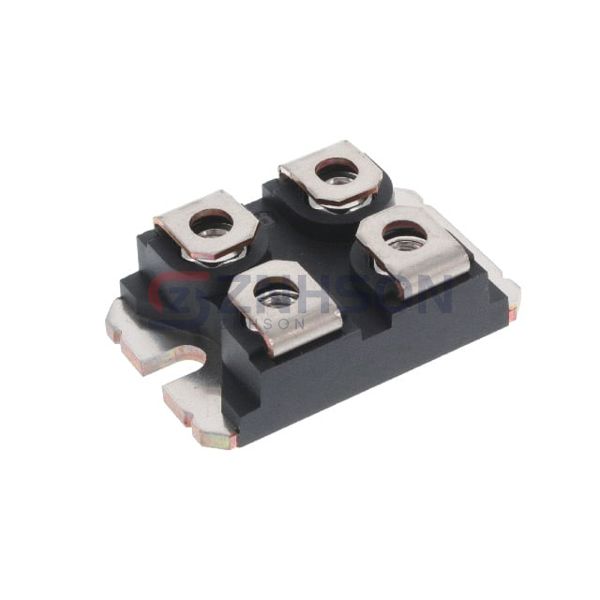

MSC100SM70JCU3
Microchip Technology
Microchip Technology
SICFET N-CH 700V 124A SOT227
$61.78
Available to order
Reference Price (USD)
1+
$61.78000
500+
$61.1622
1000+
$60.5444
1500+
$59.9266
2000+
$59.3088
2500+
$58.691
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSC100SM70JCU3 from Microchip Technology sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Microchip Technology's MSC100SM70JCU3 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 700 V
- Current - Continuous Drain (Id) @ 25°C: 124A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 19mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.4V @ 4mA
- Gate Charge (Qg) (Max) @ Vgs: 215 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 4500 pF @ 700 V
- FET Feature: -
- Power Dissipation (Max): 365W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227 (ISOTOP®)
- Package / Case: SOT-227-4, miniBLOC
