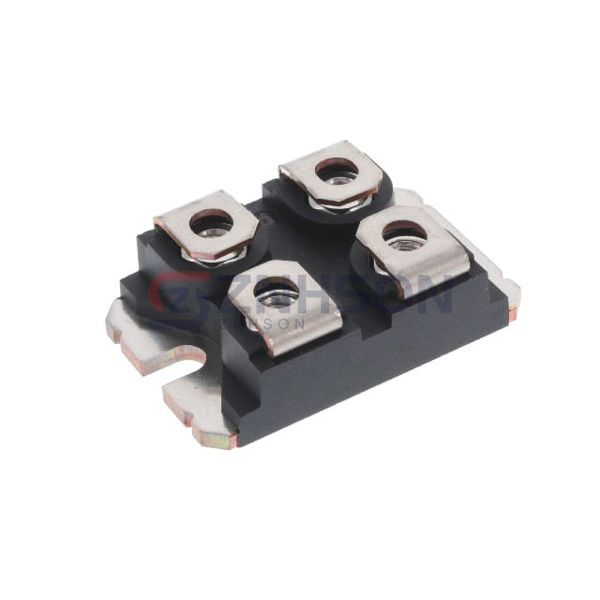

MSC40SM120JCU2
Microchip Technology
Microchip Technology
SICFET N-CH 1.2KV 55A SOT227
$47.67
Available to order
Reference Price (USD)
1+
$47.67000
500+
$47.1933
1000+
$46.7166
1500+
$46.2399
2000+
$45.7632
2500+
$45.2865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSC40SM120JCU2 from Microchip Technology sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Microchip Technology's MSC40SM120JCU2 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 55A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.7V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 137 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1990 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 245W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227 (ISOTOP®)
- Package / Case: SOT-227-4, miniBLOC
