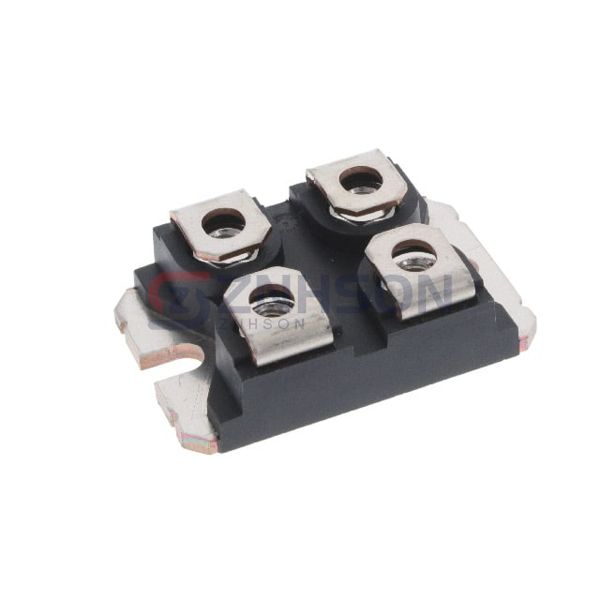

MSC40SM120JCU3
Microchip Technology
Microchip Technology
SICFET N-CH 1.2KV 55A SOT227
$47.67
Available to order
Reference Price (USD)
1+
$47.67000
500+
$47.1933
1000+
$46.7166
1500+
$46.2399
2000+
$45.7632
2500+
$45.2865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MSC40SM120JCU3 by Microchip Technology, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The MSC40SM120JCU3 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Microchip Technology.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 55A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.7V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 137 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1990 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 245W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227 (ISOTOP®)
- Package / Case: SOT-227-4, miniBLOC
