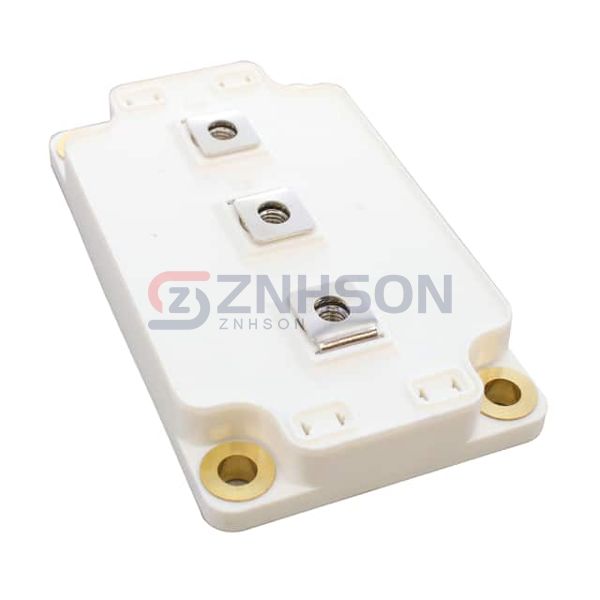

MSCDC100A120D1PAG
Microchip Technology
Microchip Technology
PM-DIODE-SIC-SBD-D1P
$158.46
Available to order
Reference Price (USD)
1+
$158.46000
500+
$156.8754
1000+
$155.2908
1500+
$153.7062
2000+
$152.1216
2500+
$150.537
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MSCDC100A120D1PAG by Microchip Technology represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Microchip Technology's patented junction design, the MSCDC100A120D1PAG achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 100A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 100 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: -
- Operating Temperature - Junction: -40°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D1P
