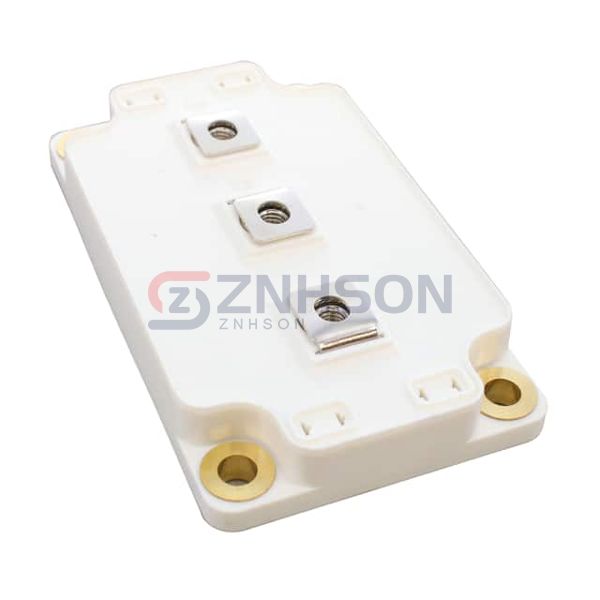

MSCDC200A120D1PAG
Microchip Technology
Microchip Technology
PM-DIODE-SIC-SBD-D1P
$248.98
Available to order
Reference Price (USD)
1+
$248.98000
500+
$246.4902
1000+
$244.0004
1500+
$241.5106
2000+
$239.0208
2500+
$236.531
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSCDC200A120D1PAG rectifier array from Microchip Technology redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Microchip Technology's precision manufacturing ensures each MSCDC200A120D1PAG meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 200A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 200 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: -
- Operating Temperature - Junction: -40°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D1P
