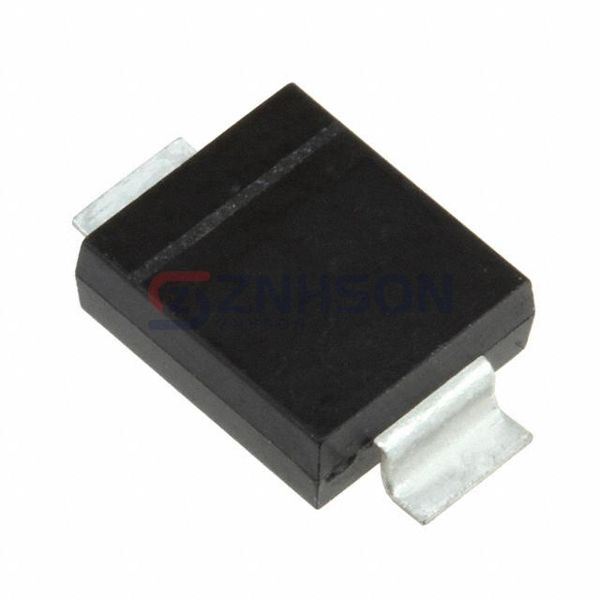

MSMCG22AE3
Microchip Technology
Microchip Technology
TVS DIODE 22VWM 35.5VC SMCG
$1.64
Available to order
Reference Price (USD)
556+
$1.73250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuit protection with the MSMCG22AE3 TVS diode from Microchip Technology. This diode excels in clamping transient voltages and ensuring system integrity. TVS diodes are crucial in applications ranging from consumer electronics to military hardware. They provide robust defense against voltage surges, such as those caused by lightning or switching loads. For example, the MSMCG22AE3 can protect military communication systems from transient interference. Microchip Technology offers top-grade TVS diodes engineered for superior performance and reliability.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 42.2A
- Power - Peak Pulse: 1500W (1.5kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-215AB, SMC Gull Wing
- Supplier Device Package: SMCG (DO-215AB)
