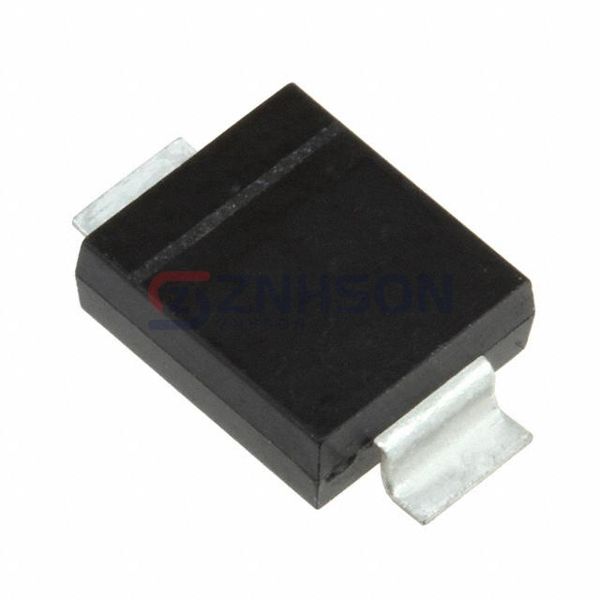

MSMCG85CAE3
Microchip Technology
Microchip Technology
TVS DIODE 85VWM 137VC SMCG
$1.74
Available to order
Reference Price (USD)
527+
$1.82875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the MSMCG85CAE3 TVS diode by Microchip Technology. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the MSMCG85CAE3 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the MSMCG85CAE3 can shield HDMI ports in consumer electronics from voltage surges. Trust Microchip Technology's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 85V
- Voltage - Breakdown (Min): 94.4V
- Voltage - Clamping (Max) @ Ipp: 137V
- Current - Peak Pulse (10/1000µs): 10.4A
- Power - Peak Pulse: 1500W (1.5kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-215AB, SMC Gull Wing
- Supplier Device Package: SMCG (DO-215AB)
