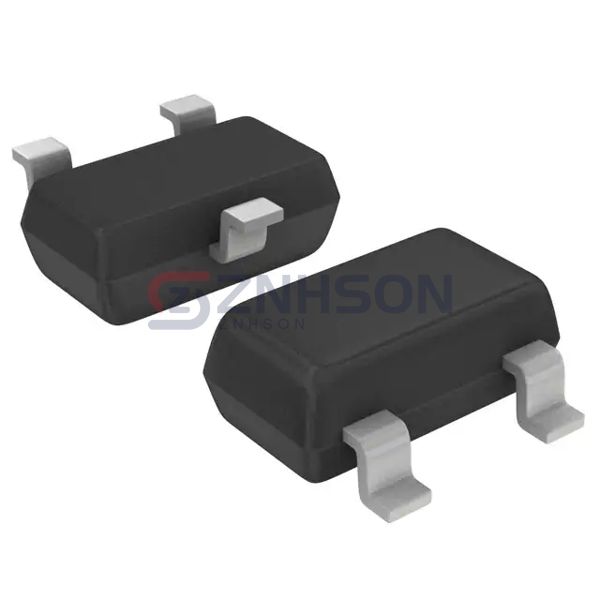

MUN2213T1G
onsemi
onsemi
TRANS PREBIAS NPN 50V 100MA SC59
$0.20
Available to order
Reference Price (USD)
3,000+
$0.02933
6,000+
$0.02655
15,000+
$0.02321
30,000+
$0.02099
75,000+
$0.01876
150,000+
$0.01579
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's MUN2213T1G redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 47 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 338 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SC-59
