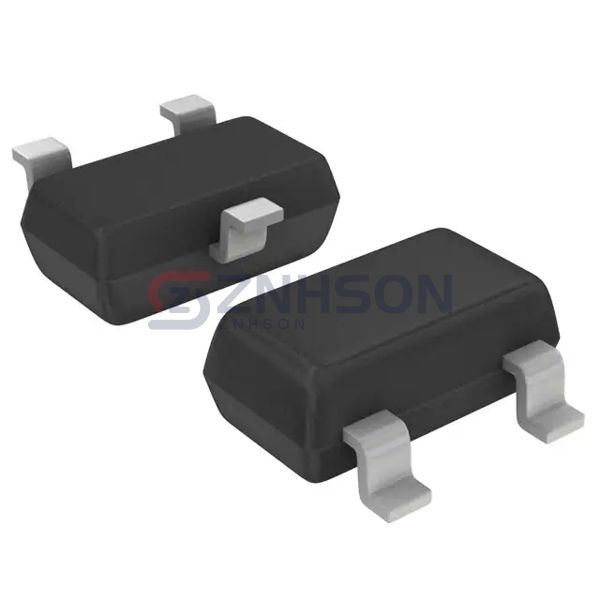

MUN2241T1
onsemi
onsemi
TRANS PREBIAS NPN 338MW SC59
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MUN2241T1 onsemi's answer to modern circuit design challenges. This pre-biased bipolar transistor combines 2N3904 compatibility with enhanced thermal characteristics. Key applications include: Electric vehicle charging stations Industrial IoT gateways Smart meter modules With 100% automated production testing, each unit delivers military-grade reliability for critical infrastructure projects.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 100 kOhms
- Resistor - Emitter Base (R2): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 5mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 338 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SC-59
