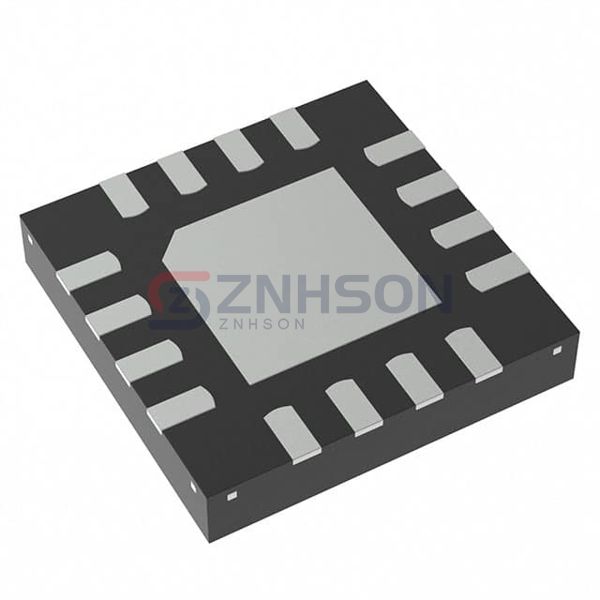

MUX36S08IRRJR
Texas Instruments
Texas Instruments
IC SWITCH SINGLE 16WQFN
$7.62
Available to order
Reference Price (USD)
1+
$7.62000
500+
$7.5438
1000+
$7.4676
1500+
$7.3914
2000+
$7.3152
2500+
$7.239
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MUX36S08IRRJR from Texas Instruments's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The MUX36S08IRRJR is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 170Ohm
- Channel-to-Channel Matching (ΔRon): 2.4Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 75ns
- -3db Bandwidth: -
- Charge Injection: 0.3pC
- Channel Capacitance (CS(off), CD(off)): 2.4pF, 7.5pF
- Current - Leakage (IS(off)) (Max): 40pA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad
- Supplier Device Package: 16-WQFN (4x4)
Related Products

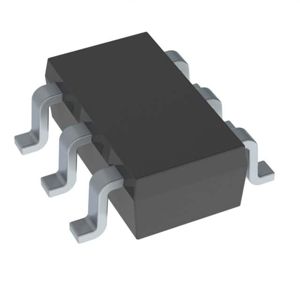

Vishay Siliconix
DG9431EDV-T1-GE3
Analog Devices Inc./Maxim Integrated
MAX4530EWP
Analog Devices Inc./Maxim Integrated
MAX4534EUD+

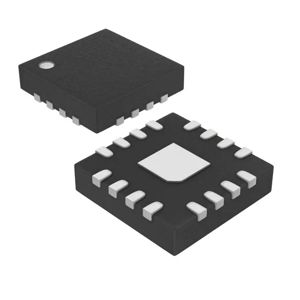

Analog Devices Inc./Maxim Integrated
MAX4693ETE+T

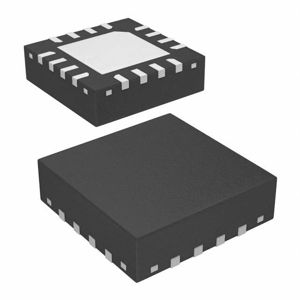

Analog Devices Inc.
