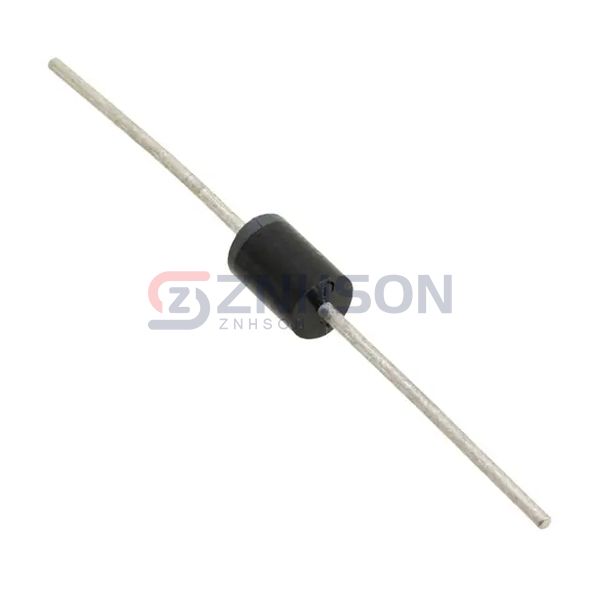

MX15KP22AE3
Microchip Technology
Microchip Technology
TVS DIODE 22VWM 37.1VC CASE 5A
$0.00
Available to order
Reference Price (USD)
100+
$50.31830
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the MX15KP22AE3 TVS diode by Microchip Technology. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the MX15KP22AE3 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the MX15KP22AE3 can shield HDMI ports in consumer electronics from voltage surges. Trust Microchip Technology's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 37.1V
- Current - Peak Pulse (10/1000µs): 404A
- Power - Peak Pulse: 15000W (15kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: DO-204AR, Axial
- Supplier Device Package: Case 5A (DO-204AR)
