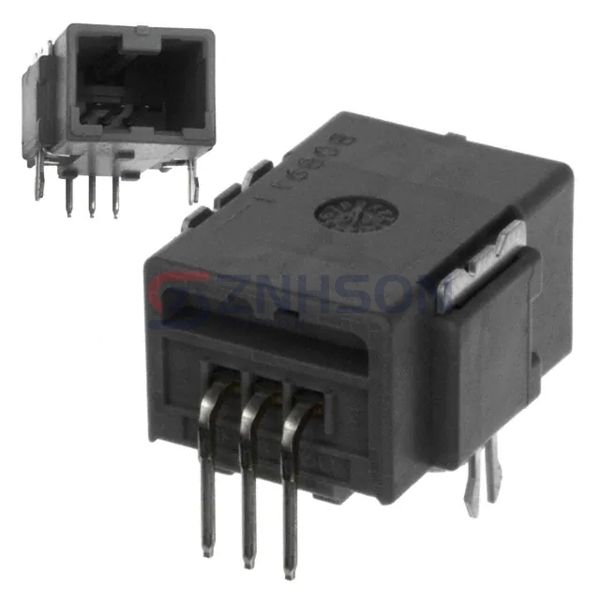

MX34003NF1
JAE Electronics
JAE Electronics
CONN HEADER R/A 3POS 2.2MM
$2.35
Available to order
Reference Price (USD)
1+
$2.08000
10+
$1.88700
100+
$1.61700
500+
$1.34750
2,016+
$1.11650
6,048+
$1.02410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the MX34003NF1 rectangular connector header from JAE Electronics, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the MX34003NF1 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. JAE Electronics guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.421" (10.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
