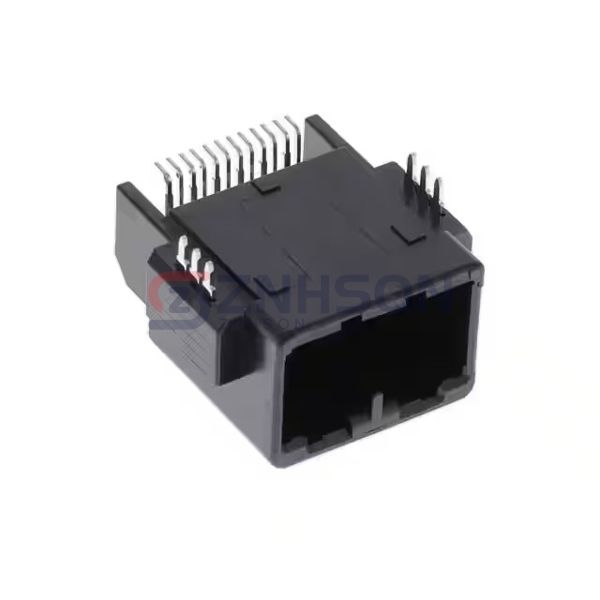

MX34R12HF4T
JAE Electronics
JAE Electronics
CONN HEADER SMD R/A 12POS 2.2MM
$3.41
Available to order
Reference Price (USD)
1+
$2.88000
10+
$2.76000
100+
$2.30000
864+
$1.78250
1,728+
$1.61000
5,184+
$1.49500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX34R12HF4T by JAE Electronics is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JAE Electronics delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.543" (13.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
