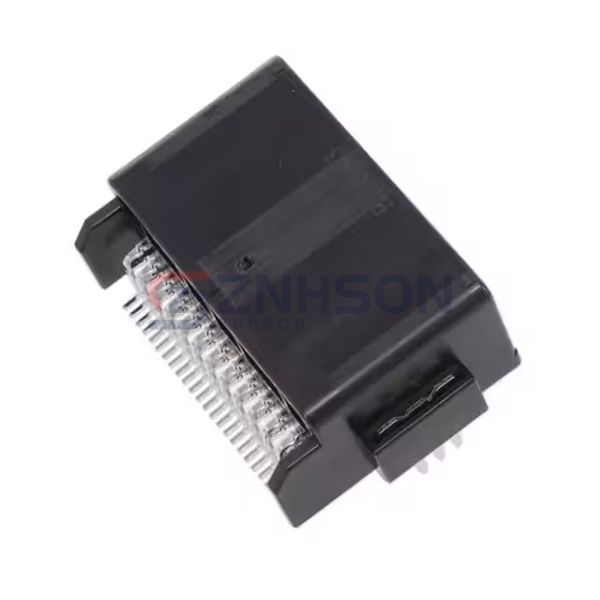

MX34R24HF4T
JAE Electronics
JAE Electronics
CONN HEADER SMD R/A 24POS 2.2MM
$3.65
Available to order
Reference Price (USD)
1+
$3.08000
10+
$2.95200
100+
$2.46000
576+
$2.09101
1,152+
$1.78350
5,184+
$1.59900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the MX34R24HF4T rectangular connector header from JAE Electronics for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JAE Electronics is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.543" (13.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PBC22SAFN
Preci-Dip
451-80-270-00-003101
Molex
0423752522
Samtec Inc.
ZSS-130-07-S-D-940
Molex
0022124082
TE Connectivity AMP Connectors
104350-5
Samtec Inc.
TSM-116-01-H-DV-P-TR
Amphenol ICC (FCI)

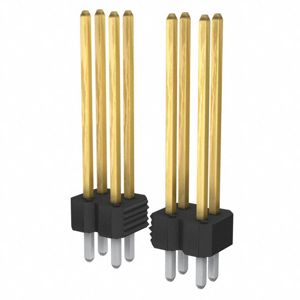

77313-120-20LF
Samtec Inc.

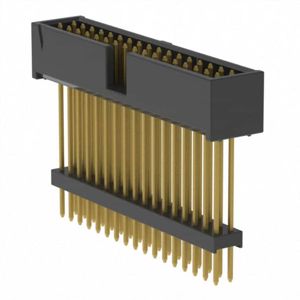

ZSS-117-07-G-D-1020
