MX34R32HF4T
JAE Electronics
JAE Electronics
CONN HEADER SMD R/A 32POS 2.2MM
$4.36
Available to order
Reference Price (USD)
1+
$3.68000
10+
$3.52800
480+
$2.57250
960+
$2.27850
1,440+
$2.13150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

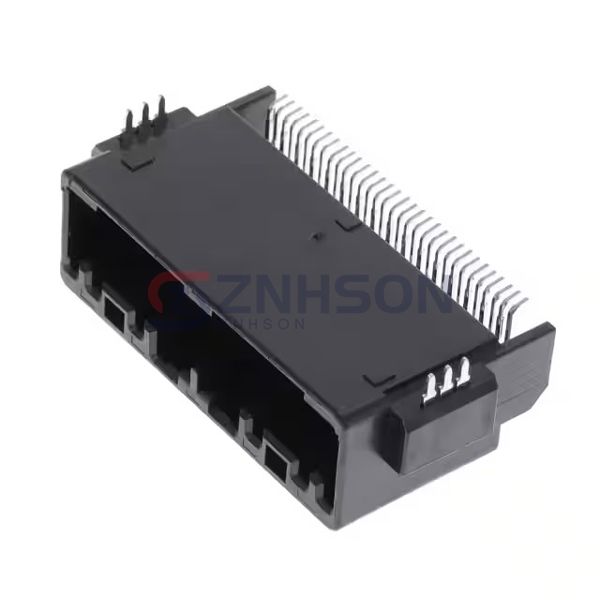

Enhance your electronic assemblies with the MX34R32HF4T rectangular connector header from JAE Electronics. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the MX34R32HF4T meets the highest industry standards. JAE Electronics provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.543" (13.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
