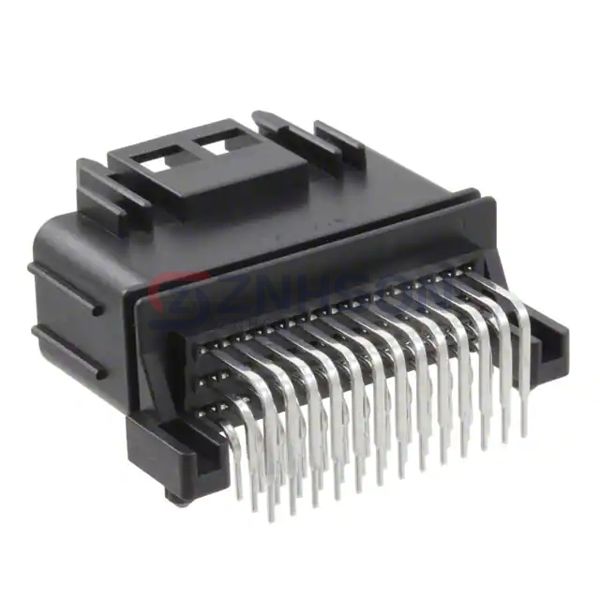

MX47039NF1
JAE Electronics
JAE Electronics
CONN HEADER R/A 39POS 2.5MM
$12.06
Available to order
Reference Price (USD)
1+
$11.20000
10+
$10.71400
25+
$9.74000
50+
$9.25300
100+
$9.00950
250+
$8.03552
500+
$7.54850
1,000+
$6.67190
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX47039NF1 by JAE Electronics is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JAE Electronics delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 39
- Number of Rows: 3
- Row Spacing - Mating: 0.142" (3.60mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.760" (19.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: Waterproof
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
