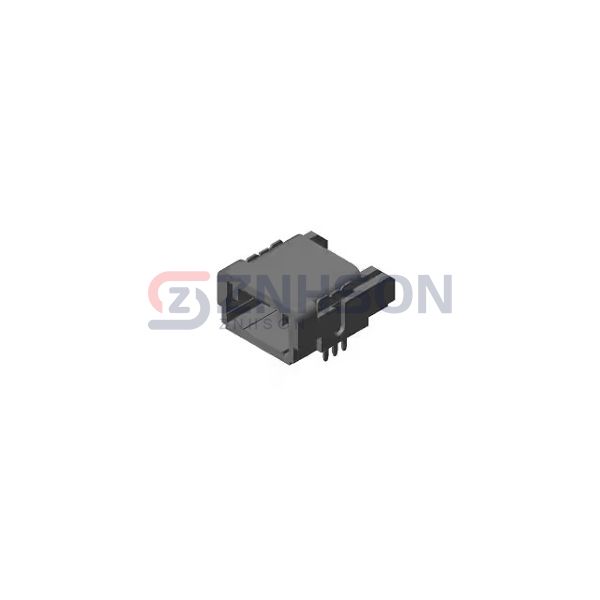

MX77A004HF2
JAE Electronics
JAE Electronics
CONN PIN HDR 4 POS R/A SMT BLUE
$5.56
Available to order
Reference Price (USD)
1+
$5.56000
500+
$5.5044
1000+
$5.4488
1500+
$5.3932
2000+
$5.3376
2500+
$5.282
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the MX77A004HF2 rectangular connector header from JAE Electronics. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the MX77A004HF2 meets the highest industry standards. JAE Electronics provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.382" (9.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Blue
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
3M
929500-01-01
Preci-Dip
451-80-234-00-016101
Preci-Dip
450-V3-230-00-006101
Mill-Max Manufacturing Corp.
350-10-121-00-001000
Samtec Inc.
MMT-110-02-T-SH-P-TR
Samtec Inc.
TSM-118-01-F-SH
Samtec Inc.
TSM-105-01-S-DV-001-P-TR
JAE Electronics
IL-G-2P-S3T2-SA
TE Connectivity AMP Connectors

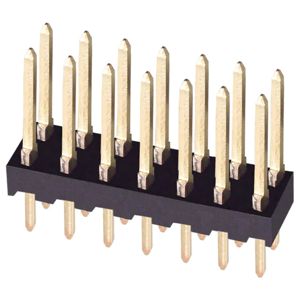

87215-4
