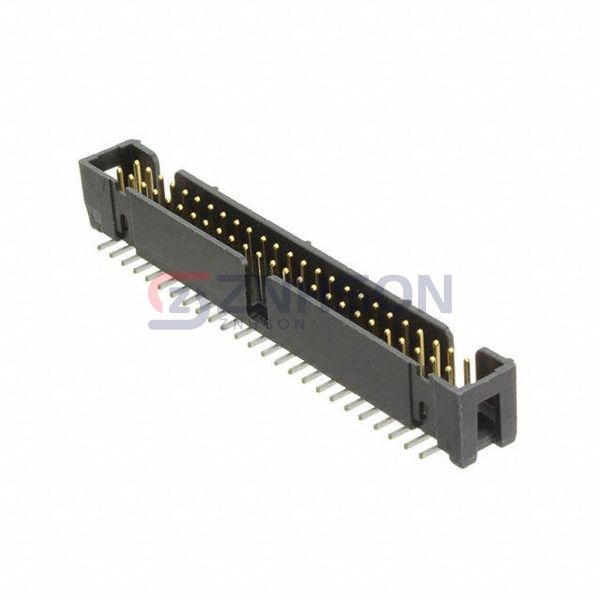

N2550-6V0C-RB-WG

Manufacturer

Description:

CONN HEADER SMD 50POS 2.54MM

Datasheet:

N2550-6V0C-RB-WG Datasheet

$6.08

Available to order

Reference Price (USD)

200+

$4.68800

400+

$4.10200

600+

$3.98480

1,000+

$3.39880

2,000+

$3.28160

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The N2550-6V0C-RB-WG by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 50
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.243" (6.17mm)
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.390" (9.91mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot, Pick and Place
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
