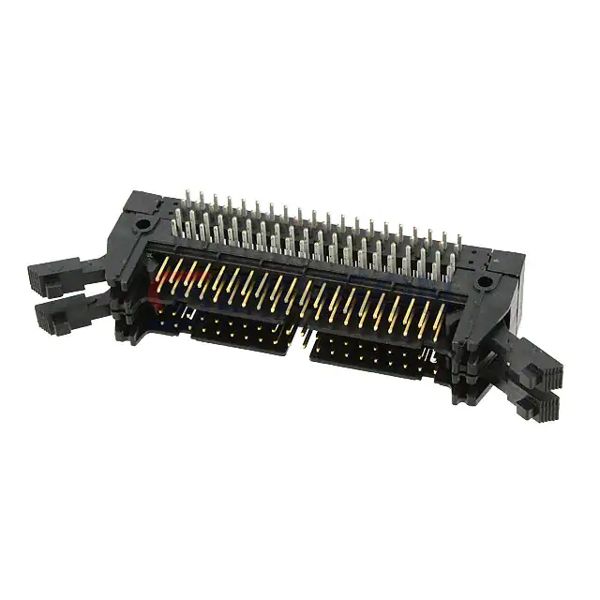

N3432-D302RB

Manufacturer

Description:

CONN HEADER R/A 40POS 2.54MM

Datasheet:

N3432-D302RB Datasheet

$14.29

Available to order

Reference Price (USD)

$14.29000

500+

$14.1471

1000+

$14.0042

1500+

$13.8613

2000+

$13.7184

2500+

$13.5755

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The N3432-D302RB by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the N3432-D302RB supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header, Stackable (2)
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 40, 40
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 3 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Long
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: -
Insulation Height: 0.660" (16.76mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1A
Voltage Rating: -
