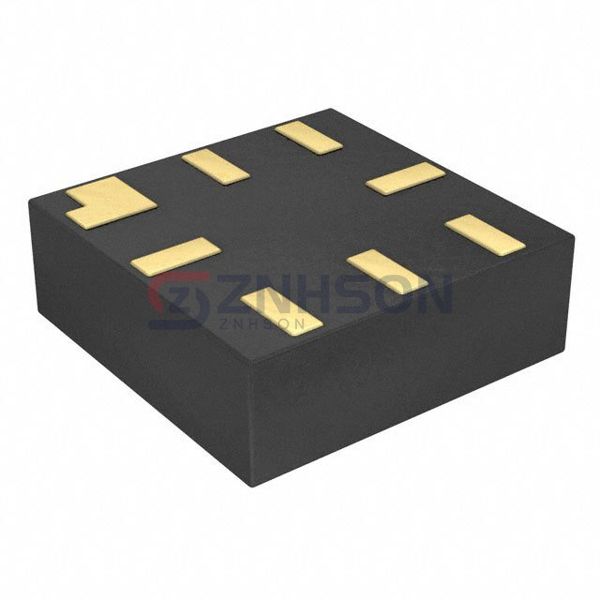

NC7WZ02L8X
onsemi
onsemi
IC GATE NOR 2CH 2-INP 8MICROPAK
$0.58
Available to order
Reference Price (USD)
5,000+
$0.17226
10,000+
$0.16038
25,000+
$0.15206
50,000+
$0.14850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your digital designs with onsemi's NC7WZ02L8X, a premium Logic - Gates and Inverters solution. This IC features ultra-low power consumption (typical ICC < 1 A) without sacrificing speed, making it ideal for battery-powered devices. The robust design includes overvoltage tolerance on inputs and power-off protection. Application areas include sensor interfaces, motor control systems, and wireless communication modules. Specific implementations might involve smart meter designs, HVAC control boards, or automotive infotainment systems. With onsemi's reputation for quality, the NC7WZ02L8X ensures reliable operation across commercial, industrial, and military temperature ranges.
Specifications
- Product Status: Obsolete
- Logic Type: NOR Gate
- Number of Circuits: 2
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: -
- Logic Level - High: -
- Max Propagation Delay @ V, Max CL: 3.7ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-MicroPak™
- Package / Case: 8-UFQFN
