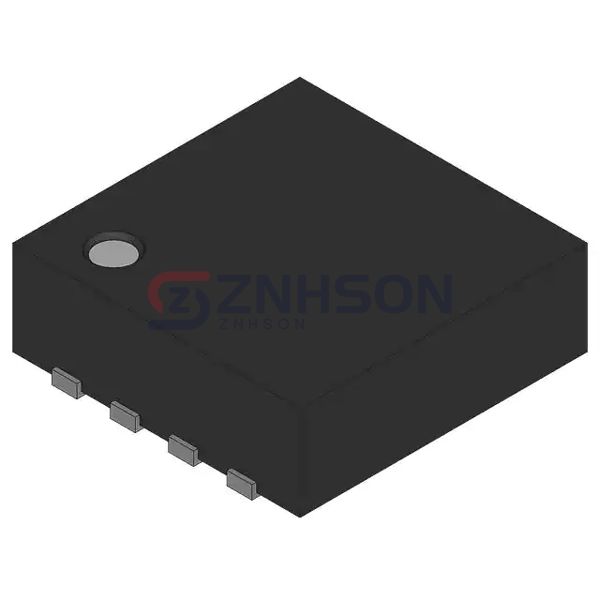

NC7WZ132L8X
Fairchild Semiconductor
Fairchild Semiconductor
IC GATE NAND 2CH 2-INP 8MICROPAK
$0.22
Available to order
Reference Price (USD)
5,000+
$0.17516
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your digital designs with Fairchild Semiconductor's NC7WZ132L8X, a premium Logic - Gates and Inverters solution. This IC features ultra-low power consumption (typical ICC < 1 A) without sacrificing speed, making it ideal for battery-powered devices. The robust design includes overvoltage tolerance on inputs and power-off protection. Application areas include sensor interfaces, motor control systems, and wireless communication modules. Specific implementations might involve smart meter designs, HVAC control boards, or automotive infotainment systems. With Fairchild Semiconductor's reputation for quality, the NC7WZ132L8X ensures reliable operation across commercial, industrial, and military temperature ranges.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 2
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.2V ~ 1.2V
- Logic Level - High: 1.4V ~ 3.6V
- Max Propagation Delay @ V, Max CL: 4.5ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-MicroPak™
- Package / Case: 8-UFQFN
