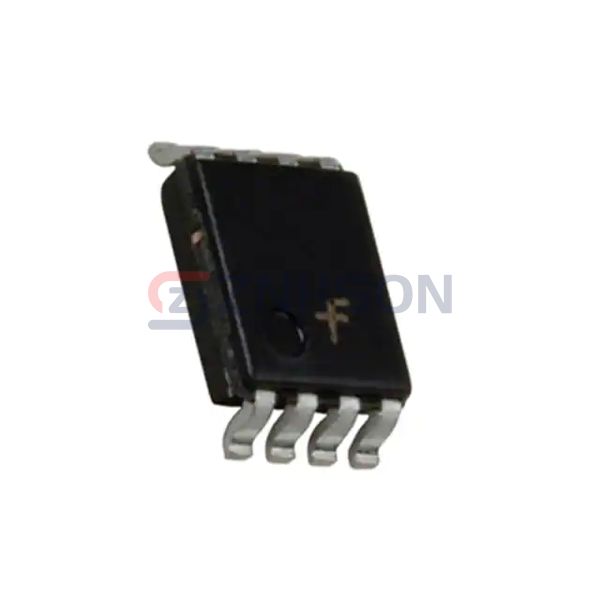

NC7WZ32K8X
onsemi
onsemi
IC GATE OR 2CH 2-INP US8
$0.49
Available to order
Reference Price (USD)
3,000+
$0.12755
6,000+
$0.11982
15,000+
$0.11209
30,000+
$0.10281
75,000+
$0.09894
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience reliable digital logic performance with onsemi's NC7WZ32K8X, a key component in our Logic - Gates and Inverters selection. This IC features buffered outputs for improved drive capability and reduced signal distortion. Technical highlights include 5ns maximum propagation delay and 24mA output drive at 5V. The NC7WZ32K8X serves critical functions in computer architecture, including address decoding, bus interfacing, and memory control. Real-world applications encompass point-of-sale terminals, industrial HMI panels, and automotive dashboard electronics. With its moisture sensitivity level (MSL) rating of 1, this component is suitable for demanding production environments and extended storage periods.
Specifications
- Product Status: Obsolete
- Logic Type: OR Gate
- Number of Circuits: 2
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: -
- Logic Level - High: -
- Max Propagation Delay @ V, Max CL: 3.7ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: US8
- Package / Case: 8-VFSOP (0.091", 2.30mm Width)
