NCV59745AMW1015TAG

onsemi

Manufacturer

onsemi

Description:

IC REG LINEAR 1.015V 3A 20QFNW

Datasheet:

NCV59745AMW1015TAG Datasheet

$1.03

Available to order

Reference Price (USD)

$1.03414

500+

$1.0237986

1000+

$1.0134572

1500+

$1.0031158

2000+

$0.9927744

2500+

$0.982433

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The NCV59745AMW1015TAG from onsemi is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.015V
Voltage - Output (Max): -
Voltage Dropout (Max): 1.4V @ 3A
Current - Output: 3A
Current - Quiescent (Iq): 2 mA
Current - Supply (Max): -
PSRR: 75dB ~ 18dB (1kHz ~ 3MHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount, Wettable Flank

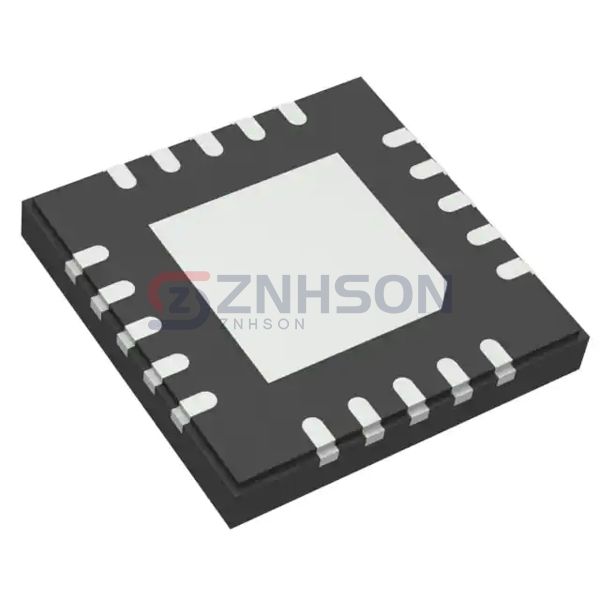

Package / Case: 20-VFQFN Exposed Pad
Supplier Device Package: 20-QFNW (4x4)
