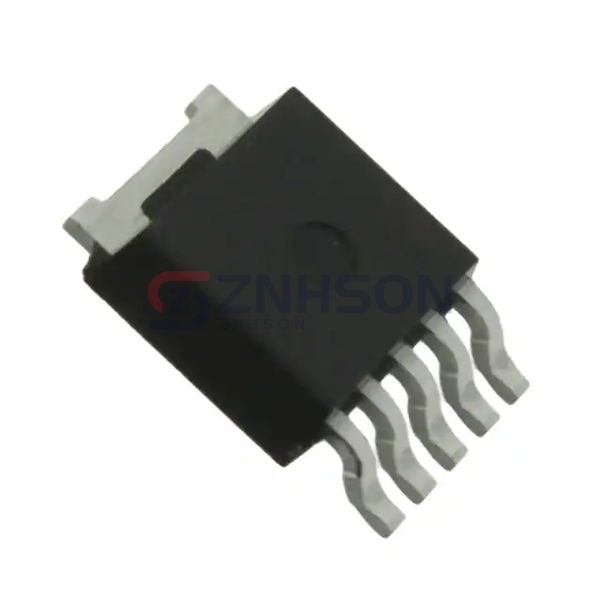

NJW4105DL5-05A-TE1
Nisshinbo Micro Devices Inc.
Nisshinbo Micro Devices Inc.
HIGH VOLTAGE IO=500MA LDO REGULA
$1.43
Available to order
Reference Price (USD)
1+
$1.43000
500+
$1.4157
1000+
$1.4014
1500+
$1.3871
2000+
$1.3728
2500+
$1.3585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NJW4105DL5-05A-TE1 from Nisshinbo Micro Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.7V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 105 µA
- Current - Supply (Max): -
- PSRR: 53dB (1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, UVLO
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-252-6, DPak (5 Leads + Tab)
- Supplier Device Package: TO-252-5
Related Products
Rohm Semiconductor
BA50DD0WT
ABLIC Inc.
S-1335D28-A4T2U3
Nisshinbo Micro Devices Inc.
RP115L301D-E2
ABLIC Inc.

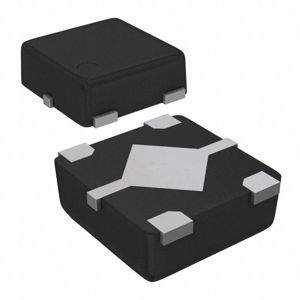

S-1333C1C-A4T1U3
ABLIC Inc.
S-872526EUP-AZAT2G
Nisshinbo Micro Devices Inc.

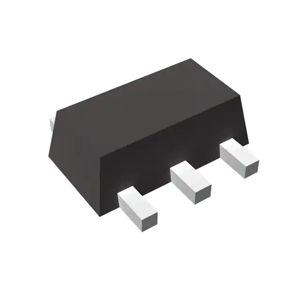

R1154H120B-T1-FE
Microchip Technology

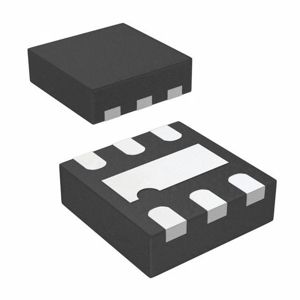

MIC5371-SPYMT-TR
