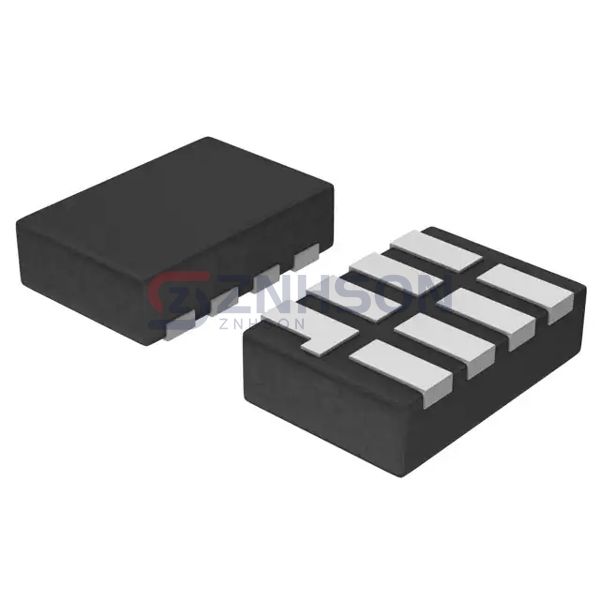

NL27WZ02MU1TCG
onsemi
onsemi
IC GATE NOR 2CH 2-INP 8UDFN
$0.71
Available to order
Reference Price (USD)
1+
$0.71334
500+
$0.7062066
1000+
$0.6990732
1500+
$0.6919398
2000+
$0.6848064
2500+
$0.677673
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NL27WZ02MU1TCG from onsemi delivers exceptional value in the Logic - Gates and Inverters market segment. This surface-mount IC combines multiple universal logic gates with optimized power-speed performance ratios. Key benefits include latch-up immunity exceeding 500mA and input leakage current below 1 A. Design engineers implement this component in power management systems, digital control circuits, and signal processing applications. Specific use cases include solar inverter controls, elevator logic boards, and industrial sensor networks. The NL27WZ02MU1TCG's compatibility with automated pick-and-place manufacturing processes makes it an economical choice for high-volume production runs across consumer and industrial sectors.
Specifications
- Product Status: Obsolete
- Logic Type: NOR Gate
- Number of Circuits: 2
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: -
- Logic Level - High: -
- Max Propagation Delay @ V, Max CL: 3.7ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-UDFN (1.95x1)
- Package / Case: 8-UFDFN
