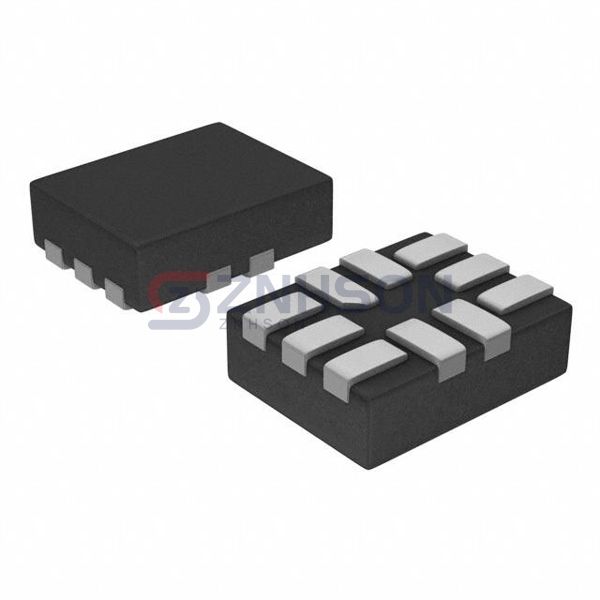

NLAS5223CLMUTAG
onsemi
onsemi
IC SWITCH DUAL SPDT LV 10UQFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.24640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NLAS5223CLMUTAG by onsemi represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The NLAS5223CLMUTAG is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 350mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm (Max)
- Voltage - Supply, Single (V+): 1.65V ~ 4.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 50ns, 30ns
- -3db Bandwidth: 24MHz
- Charge Injection: 38pC
- Channel Capacitance (CS(off), CD(off)): 60pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -70dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.4x1.8)
