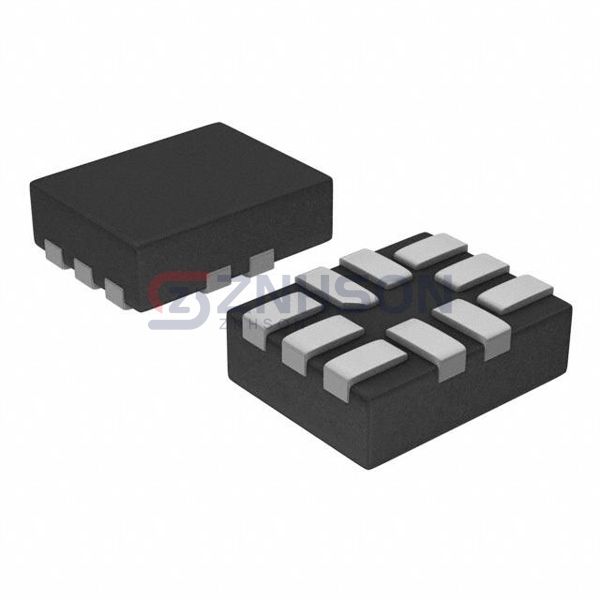

NLAS5223CMUTAG
onsemi
onsemi
IC SWITCH DUAL SPDT LV 10UQFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.23200
6,000+
$0.21600
15,000+
$0.20800
30,000+
$0.20000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NLAS5223CMUTAG - onsemi's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The NLAS5223CMUTAG enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 350mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm (Max)
- Voltage - Supply, Single (V+): 1.65V ~ 4.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 50ns, 30ns
- -3db Bandwidth: 24MHz
- Charge Injection: 38pC
- Channel Capacitance (CS(off), CD(off)): 60pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -70dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.4x1.8)
