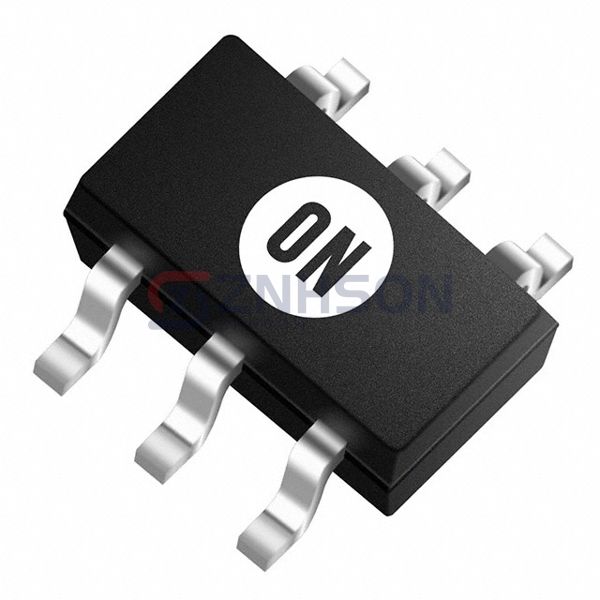

NLV27WZ14DFT2G
onsemi
onsemi
IC INVERT SCHMITT 2CH 2-INP SC88
$0.43
Available to order
Reference Price (USD)
3,000+
$0.13920
6,000+
$0.13120
15,000+
$0.12320
30,000+
$0.11360
75,000+
$0.10960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the precision engineering of onsemi's NLV27WZ14DFT2G, a standout in our Logic - Gates and Inverters inventory. This integrated circuit offers multiple logic functions in a single package, reducing board space and simplifying circuit design. Key features include Schmitt-trigger inputs for improved signal integrity, balanced propagation delays, and compatibility with TTL logic levels. The NLV27WZ14DFT2G finds applications in digital signal processing, computer peripherals, and communication systems. From industrial PLCs to consumer electronics like gaming consoles and smart TVs, this logic IC delivers consistent performance. Its RoHS compliance and lead-free construction meet global environmental standards.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 2
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.4V ~ 1.2V
- Logic Level - High: 1.8V ~ 3.6V
- Max Propagation Delay @ V, Max CL: 4.9ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: SC-88/SC70-6/SOT-363
- Package / Case: 6-TSSOP, SC-88, SOT-363
