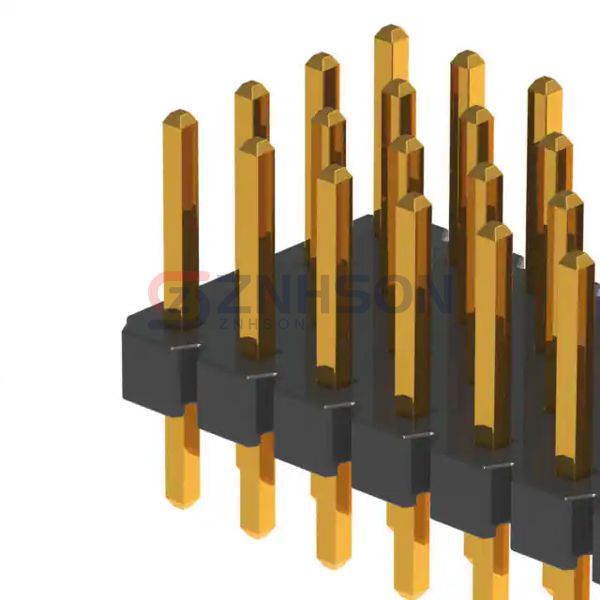

NRPN134RCCN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 52POS 2MM
$1.78
Available to order
Reference Price (USD)
1+
$1.78002
500+
$1.7622198
1000+
$1.7444196
1500+
$1.7266194
2000+
$1.7088192
2500+
$1.691019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the NRPN134RCCN-RC rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the NRPN134RCCN-RC ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 52
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.173" (4.40mm)
- Contact Length - Post: 0.094" (2.40mm)
- Overall Contact Length: 0.327" (8.30mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77311-127-04LF
Samtec Inc.
TSM-108-01-T-SV-A
Preci-Dip
350-80-107-00-012101
Molex
0015800107
Molex
0878320810
Samtec Inc.
TMM-111-01-F-S-RA
TE Connectivity AMP Connectors
1-1318300-5
Samtec Inc.
FTM-120-03-L-DV-P

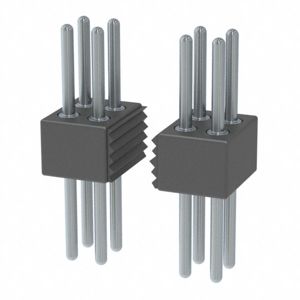

Mill-Max Manufacturing Corp.
