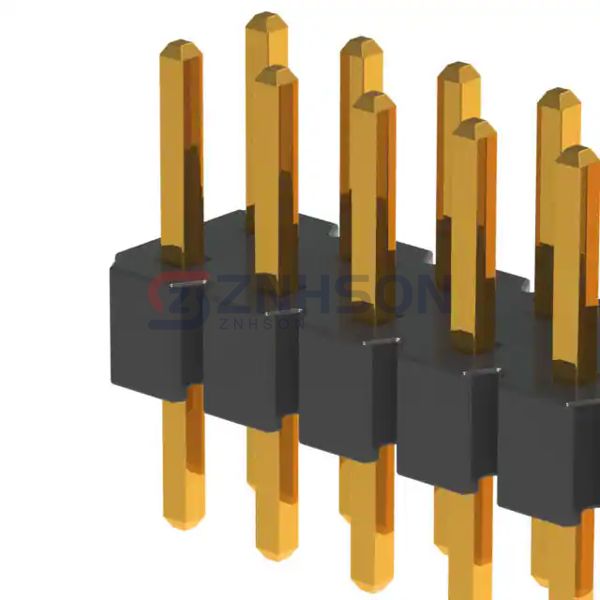

NRPN252PAEN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 50POS 2MM
$2.00
Available to order
Reference Price (USD)
1+
$2.00000
10+
$1.81500
25+
$1.70440
50+
$1.63020
100+
$1.55610
250+
$1.40792
500+
$1.29676
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the NRPN252PAEN-RC rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the NRPN252PAEN-RC meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.330" (8.38mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 150V
Related Products
Samtec Inc.
TMM-108-01-S-D-SM-A-P-TR
TE Connectivity AMP Connectors
2-917658-2
Samtec Inc.
FTSH-120-04-FM-DV-A
3M
2520-5002UB
Samtec Inc.

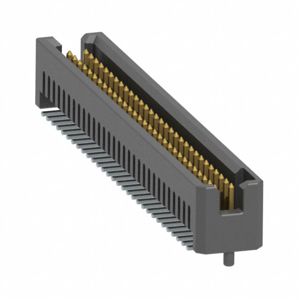

TFM-130-02-L-D-A-P-TR
Preci-Dip

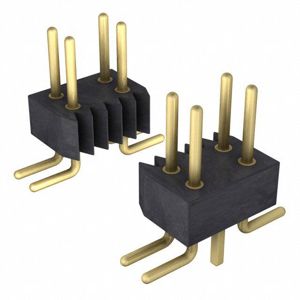

852-10-014-30-051101
Preci-Dip

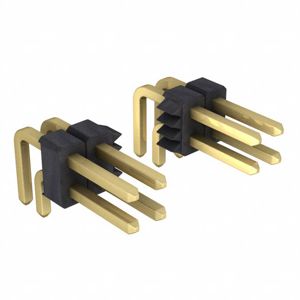

892-70-018-20-002101
