NSR0320MW2T1
onsemi
onsemi
RECTIFIER DIODE, SCHOTTKY
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSR0320MW2T1 by onsemi is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the NSR0320MW2T1 ensures long-term reliability even in harsh operating conditions. Trust onsemi for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 500 mV @ 900 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 15 V
- Capacitance @ Vr, F: 29pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: -55°C ~ 125°C
Related Products
Taiwan Semiconductor Corporation
SS25L MHG
Vishay General Semiconductor - Diodes Division
SS12HE3_A/I
Bourns Inc.
CD0603-B00340
Diodes Incorporated
B340B-13-G
STMicroelectronics
BYT08P-1000
Taiwan Semiconductor Corporation
MUR360SHM6G
Vishay General Semiconductor - Diodes Division
MBRB10H60HE3/45
Panasonic Electronic Components
DB2J31600L
Comchip Technology

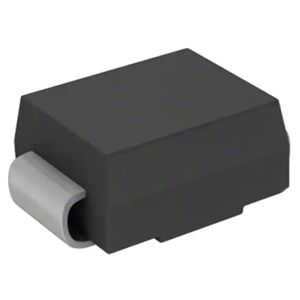

CEFB103-G
