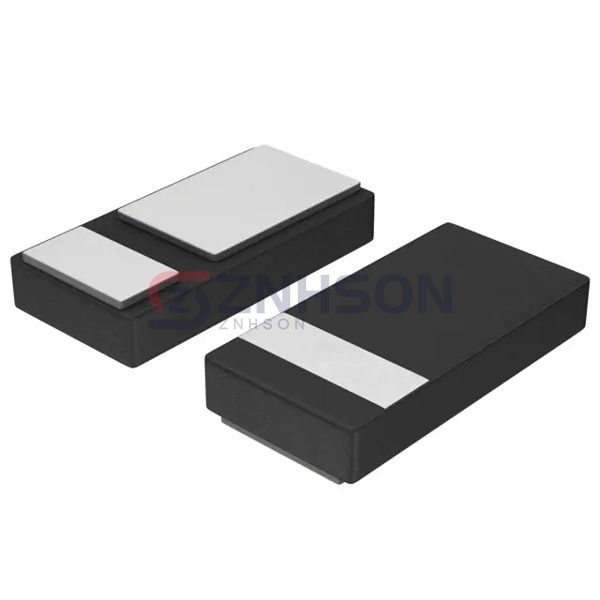

NSR05F20NXT5G
onsemi
onsemi
DIODE SCHOTTKY 20V 500MA 2DSN
$0.47
Available to order
Reference Price (USD)
5,000+
$0.10230
10,000+
$0.09570
25,000+
$0.09240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSR05F20NXT5G from onsemi is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust onsemi's NSR05F20NXT5G for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 500mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 430 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 75 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-DSN (1x0.6), (0402)
- Operating Temperature - Junction: 150°C (Max)
