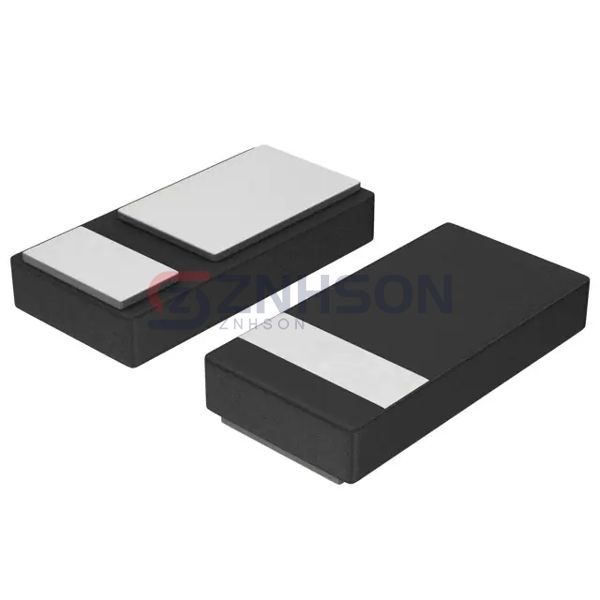

NSR20F30NXT5G
onsemi
onsemi
DIODE SCHOTTKY 30V 2A 2DSN
$0.65
Available to order
Reference Price (USD)
5,000+
$0.14104
10,000+
$0.13244
25,000+
$0.12814
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the NSR20F30NXT5G single rectifier diode by onsemi, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The NSR20F30NXT5G is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose onsemi's NSR20F30NXT5G for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 2A (DC)
- Voltage - Forward (Vf) (Max) @ If: 480 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 150 µA @ 30 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 2-XDFN
- Supplier Device Package: 2-DSN (1.6x.80)
- Operating Temperature - Junction: 150°C (Max)
