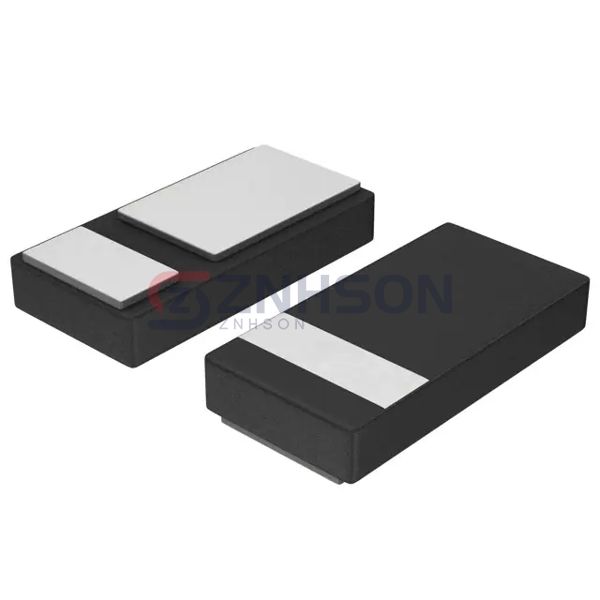

NSR20F30QNXT5G
onsemi

onsemi
DIODE SCHOTTKY 30V 2A 2DSN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSR20F30QNXT5G from onsemi is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust onsemi's NSR20F30QNXT5G for superior performance and durability in demanding environments.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 2A (DC)
- Voltage - Forward (Vf) (Max) @ If: 480 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 150 µA @ 30 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 2-XDFN
- Supplier Device Package: 2-DSN (1.6x.80)
- Operating Temperature - Junction: 150°C (Max)
