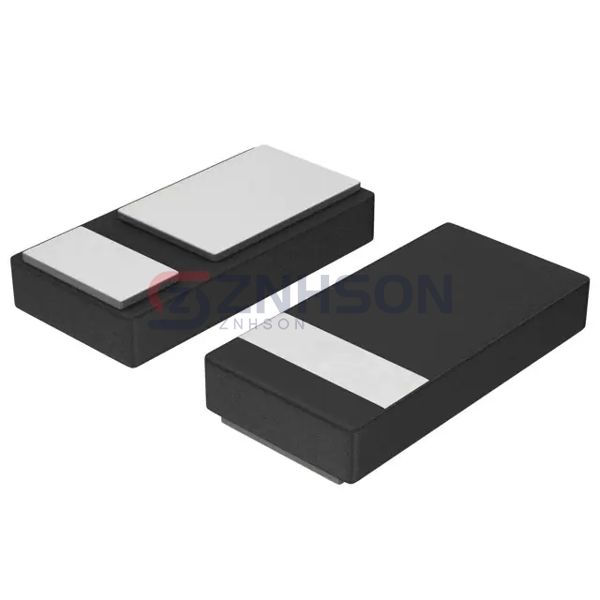

NSR20F40NXT5G
onsemi
onsemi
DIODE SCHOTTKY 40V 2A 2DSN
$0.65
Available to order
Reference Price (USD)
5,000+
$0.14104
10,000+
$0.13244
25,000+
$0.12814
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the NSR20F40NXT5G single rectifier diode from onsemi. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The NSR20F40NXT5G is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. onsemi's commitment to innovation ensures that the NSR20F40NXT5G meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 2A (DC)
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 150 µA @ 40 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 0603 (1608 Metric)
- Supplier Device Package: 2-DSN (1.6x0.8), (0603)
- Operating Temperature - Junction: 150°C (Max)
