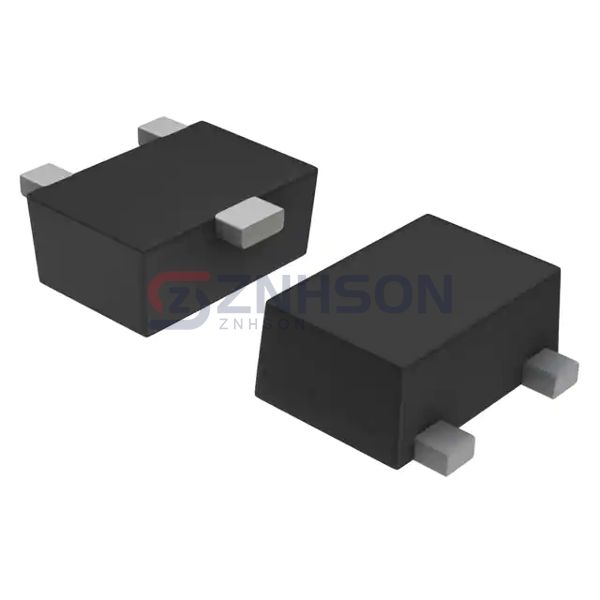

NSR30CM3T5G
onsemi
onsemi
DIODE ARRAY SCHOTTKY 30V SOT723
$0.46
Available to order
Reference Price (USD)
8,000+
$0.07560
16,000+
$0.06760
24,000+
$0.06360
56,000+
$0.05960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the NSR30CM3T5G diode rectifier array by onsemi, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. onsemi delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: 125°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SOT-723
- Supplier Device Package: SOT-723
