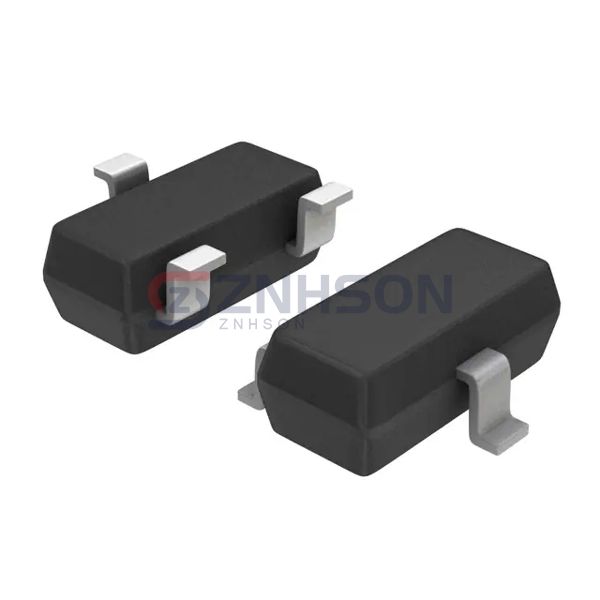

NSVBAT54LT1G
onsemi
onsemi
DIODE SCHOTTKY 30V 200MA SOT23-3
$0.38
Available to order
Reference Price (USD)
3,000+
$0.06573
6,000+
$0.05748
15,000+
$0.04923
30,000+
$0.04648
75,000+
$0.04373
150,000+
$0.04098
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSVBAT54LT1G from onsemi is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust onsemi's NSVBAT54LT1G for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
- Operating Temperature - Junction: -55°C ~ 125°C
