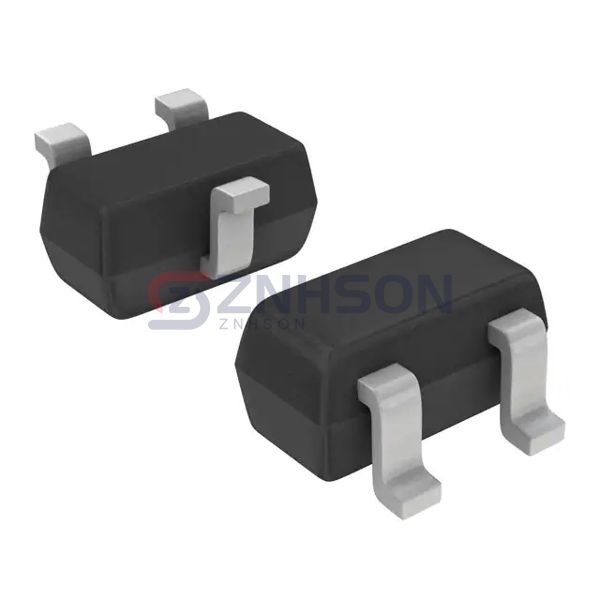

NSVBAV70TT1G
onsemi
onsemi
DIODE ARRAY SW 100V 100MA SC75
$0.06
Available to order
Reference Price (USD)
3,000+
$0.06800
6,000+
$0.06120
15,000+
$0.05440
30,000+
$0.05100
75,000+
$0.04760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your circuitry with the NSVBAV70TT1G by onsemi, a top-tier rectifier diode array from the Diodes - Rectifiers - Arrays subcategory. Engineered for precision and reliability, this component features fast switching and high current capacity, making it perfect for AC/DC conversion and voltage regulation. Common applications include welding machines, battery chargers, and renewable energy systems. With onsemi's commitment to quality, the NSVBAV70TT1G stands out as a robust solution for engineers seeking optimal performance in harsh environments.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 50 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 100 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
