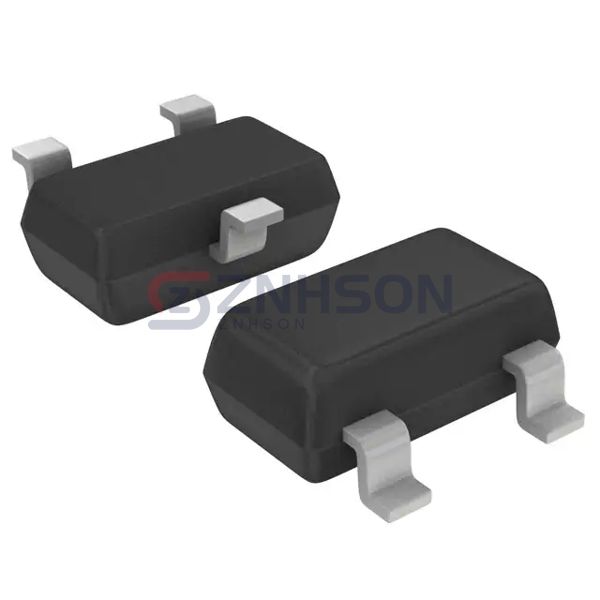

NSVMUN2233T1G
onsemi
onsemi
TRANS PREBIAS NPN 50V SC59-3
$0.04
Available to order
Reference Price (USD)
6,000+
$0.05943
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with onsemi's NSVMUN2233T1G, a pre-biased BJT transistor engineered for efficiency. This single bipolar transistor features optimized current gain and minimal leakage, perfect for low-power circuits. Its compact package suits space-constrained applications like IoT devices, automotive modules, and power management systems. onsemi delivers superior discrete semiconductor solutions meeting rigorous industry standards for durability and performance.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 230 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SC-59
